Super Clean Mill(SCM)
Products

Product Outline

SCM is an impact type pulverizer excellent in disassembly/cleaning performance, developed to comply with GMP thoroughly. Mainly SCM fits for milling pharmaceutical products and foods. The advantages of the Jiyu Mill, which is the pioneer of impact type pulverizer, such as high capacity, less heat generation, easy control of particle distribution, and easy maintenance was kept.

Features

• Powder contact parts are easily disassembled so the perfect cleaning can be made.
• Bearings and shaft seal part are separated. SCM has air seal structure by which foreign materials can be prohibited from entering from outside.

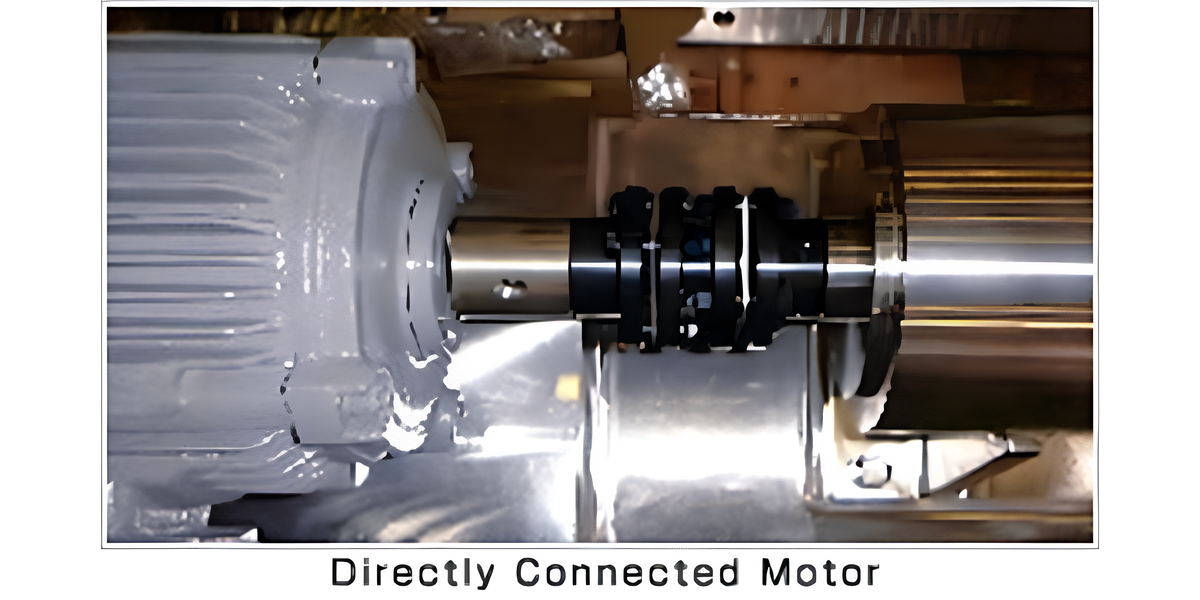

• Rotating part and motor are directly connected via coupling so there is no concern about belt dust in the surroundings.
• As for the bearing, grease-filled, non-feeding type is adopted so refilling of oil is not required.

Application Examples

• Pharmaceutical products
• Foods
• Food additives
• Cosmetics
• Chemicals and Fine chemicals

Practical Use

• Pulverization system including raw material feeder, blower, cyclone, etc. can be constructed.
• It is possible to set up a closed-circuit system utilizing inert gas.
