Mini - Extruder
Products

Product Outline

Extruder provides a technology to extrude materials and form uniform solid dispersions with twin screws and precisely temperature controlled barrels. Because it is possible to extrude at the smallest scale, Mini-Extruder is suitable for tests using rare materials or tests that need to attempt many formulation.

Features

• Tests with small amount of materials are possible.
• Our extruders are easy to clean and corresponds easily to cleaning validation.
• Modular-screw design enables flexible settings for the screw configuration.
• The units are very compact, require only limited space and can be easily stored in isolators for highly, active pharmaceutical ingredients.
• Feeders, conveyor belt, cutting heads , granulators and spheronizer for all extrusion applications are available upon request.

Application Examples

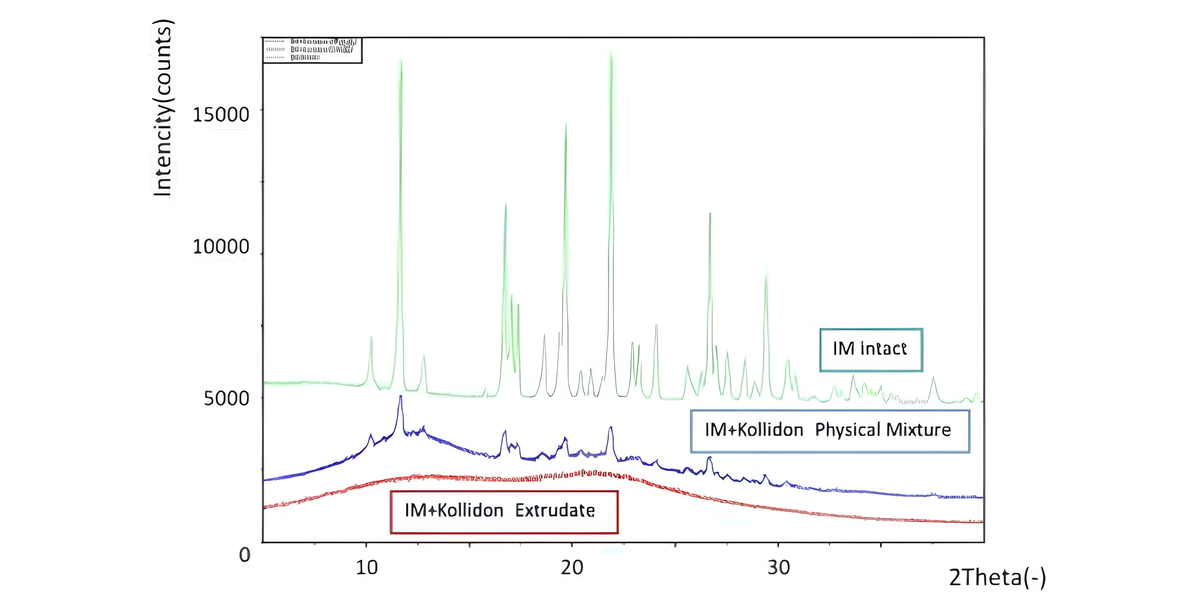

• Solubility enhancement of poorly-water-soluble drugs
• Sustained-release formulation
• Taste masking
• Polymer compounds

Practical Use

The modular design of the screw

• We offer modular screws with specific conveyor segments for kneading, mixing, compressing, pressing, relaxing, or backwards conveying. The modular components can be replaced and reconfigured at any time.
• This allows flexible and ideal adaptation to different formulations.
