Media Slurry Dryer (MSD)
Products

Product Outline

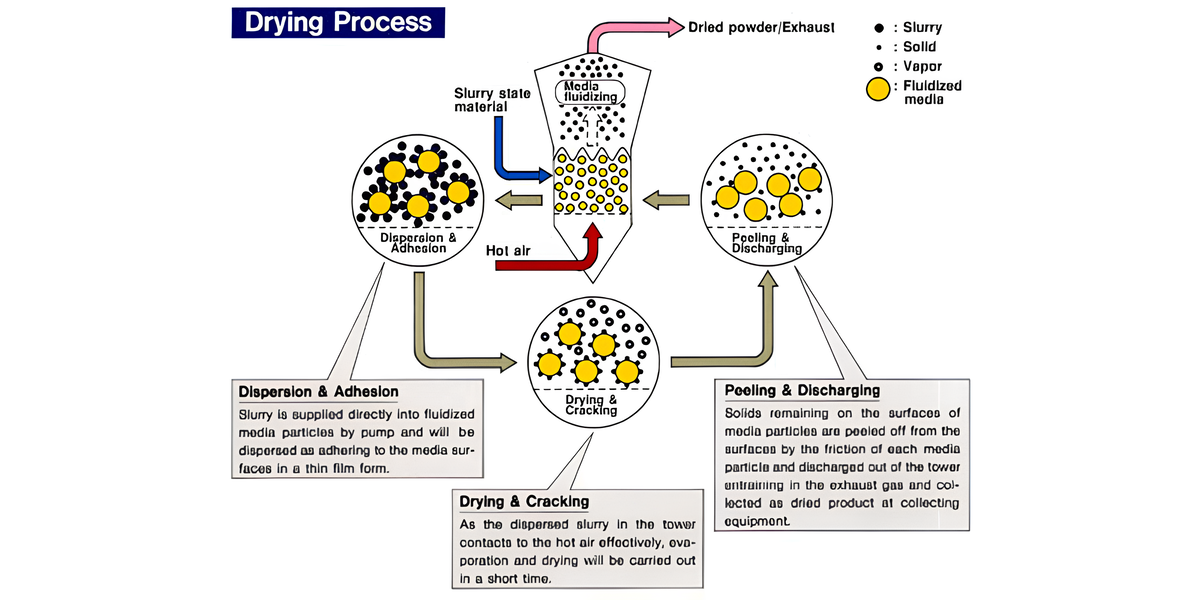

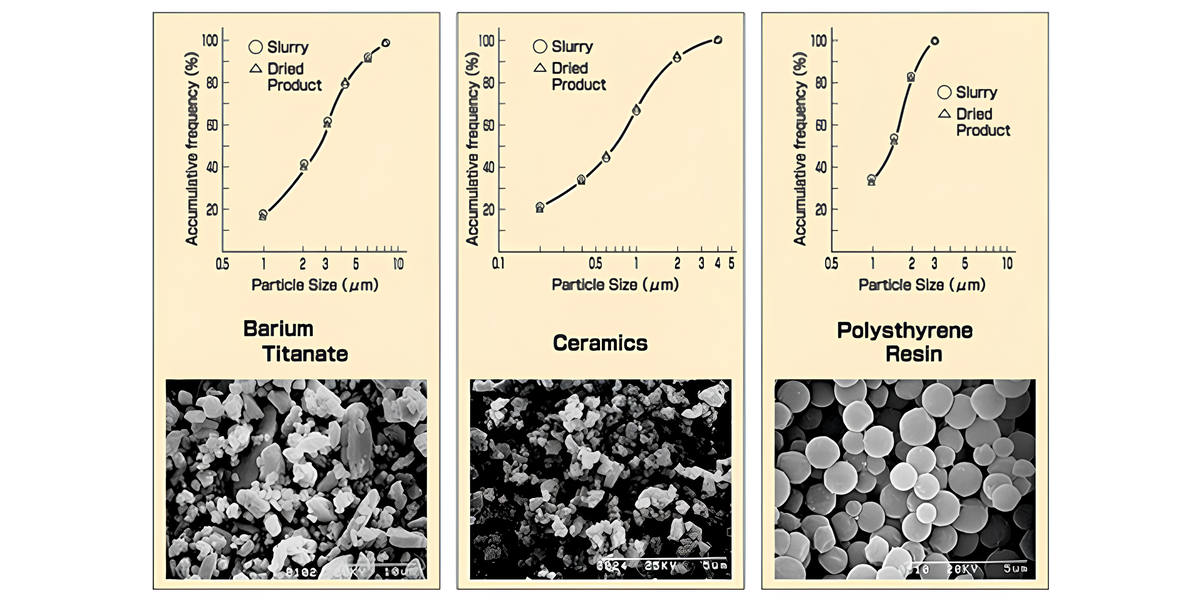

MSD is a dryer for drying slurry material continuously and obtaining powders without causing agglomeration, in a size of primary particles. The slurry material is supplied by a pump directly to the media which is fluidized by hot air inside the drying tower. The supplied slurry material is dispersed into the fluidized bed and dried on the surface of the media. The slurry material can be dried in a short time, and the powders are continuously detached from the media by the mutual contact of the media. The dried powders are discharged together with the exhaust air out of the drying tower, and collected as primary particles through a cyclone and a bag filter.

Features

• Active movement of the media can disperse slurry material into the fluidized bed readily and efficiently, therefore, enable to dry wide range from low to high viscous materials.
• Heat transfer capability coefficient ha（KW/m3・K）is as the same value with the normal fluidized bed dryer, therefore the equipment is compact. In comparison to a spray dryer, the volume of the drying tower is approximately 1/20.
• Active fluidization of the media causes efficient heat exchange and lowers the necessary heat energy.
• Spray device is not required for atomization of the slurry material, therefore adjustments of the viscosity of the slurry is not required.
• There are no rotating equipment and driving parts inside the drying tower, which allows easy maintenance. Sanitary design is also available.

Application Examples

• Inorganic Slurry：Oxides, Calcium carbonate, Carbon black, Ferrite, Bentonite, Glass dust, Kaolin, etc.
• Organic Slurry：Emulsion resins (Acryl, Polystyrene, Vinyl chloride, etc.), Dye, Pigment, Pharmaceutical, Surfactants, Animal blood, etc.
